Profilometer
smartWLI Extended
Universal sensor for measuring labs

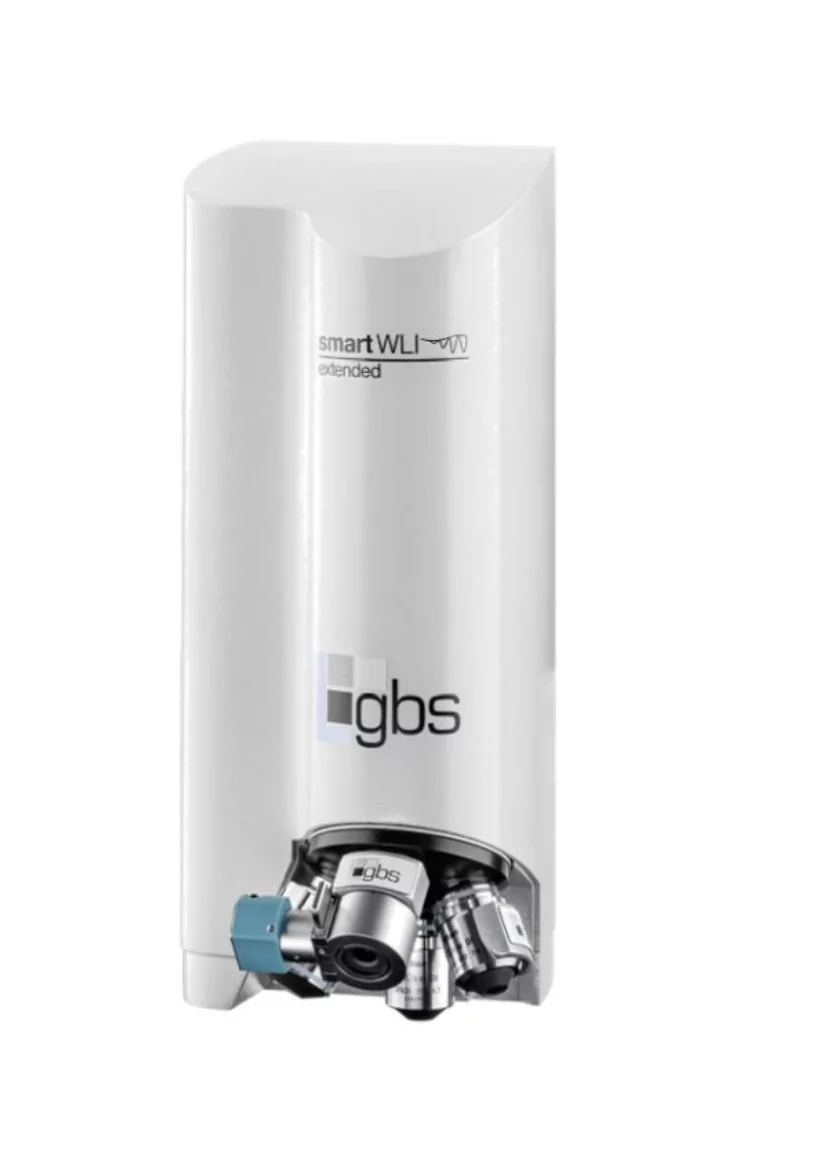

SmartWLI Extended
Description:
The manual turret simplifies operation of the fast optical 3D sensor. The 400 µm piezo actuator enables measurement of extremely smooth surfaces. The turret allows for easy localization of small features using low-magnification objectives and instant switching to a different objective for measurement.
A wide range of different stands and granite portals allows GBS optical 3D profilers to be configured to meet specific requirements. Alternatively, the SDK—including C++ and C# libraries as well as source code for sample applications—can be used to integrate the sensor into custom measurement stations.
Key Features:
- Measurement Axis: Piezo positioning system with capacitive sensor and position control
- High-Speed Camera: 1920 x 1200 pixels / 169 fps, acceleration up to 3.2 kfps with decimation
- Point Evaluation: Massively parallel real-time processing on GPGPUs
- SDK: Software libraries in C++ and C# with sample application and source code
- Optional evaluation algorithms: HD-EPSI (High Density Extended Phase Shift Interferometry) with small scan steps
- Profile Averaging: Optional averaging over up to 40 individual measurements for noise reduction
- Step Sizes: Variable step sizes for optimizing resolution and measurement speed
- Simplified Automation: I/O module for triggering predefined measurement and evaluation processes
Specification:
- Scanner - 400 µm piezo positioner
- Objective - manual turret up to 4 objectives
- Pixel - 1920 x 1200
- Speed - 169 fps full resolution / up to 3.2 kfps with decimation and ROI
- Topography - 0.15 nm
- RMS - 0.015 nm
- Operation - Windows 10 / 11
- Hardware - Core I5, 32 GB RAM, 1 TB SSD, 16 TFLOP GPGPU
