RAMAN LASER:

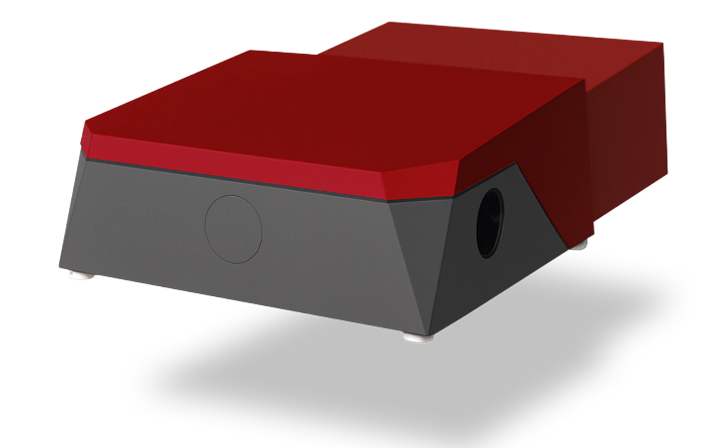

PICUS DUO+
PICUS DUO+ laser source is ready to use for multimodal CARS and SRS imaging. The turnkey PICUS DUO+ offers a single output, control for power, polarization and divergence, while being compact and air-cooled.
Electronically triggered wavelength conversion provides an unmatched combination of tuning speed and range, while the DUO+ seamlessly integrates with your microscope.
Specification:
- Covered wavenumbers 700 - 3100 cm⁻¹ with step size of 0.1 cm⁻¹ Associated tuning range Output A: approx. 780 - 980 nm Output B: approx. 1027 - 1055 nm
- Tuning speed < 200 ms Average power Output A: 75 - 185 mW, Output B: > 300 mW
- Average power (w modulation & reference port for balanced detection) Output A: 37 - 90 mW, Output B: > 200 mW
- Typical pulse duration Output A: 6 - 12 PS, Output B: 2 - 3 ps
- Spectral resolution < 12 cm⁻¹ Repetition rate ~40.5 MHz
- Integrated tunable delay ± 4 cm ≈ 260 p
Applications:
- Rapid hyperspectral SRS & CARS imaging
- Tissue diagnostics via virtual H&E
- Cell phenotyping
- Rapid spectroscopy via point sampling
