Solar simulator

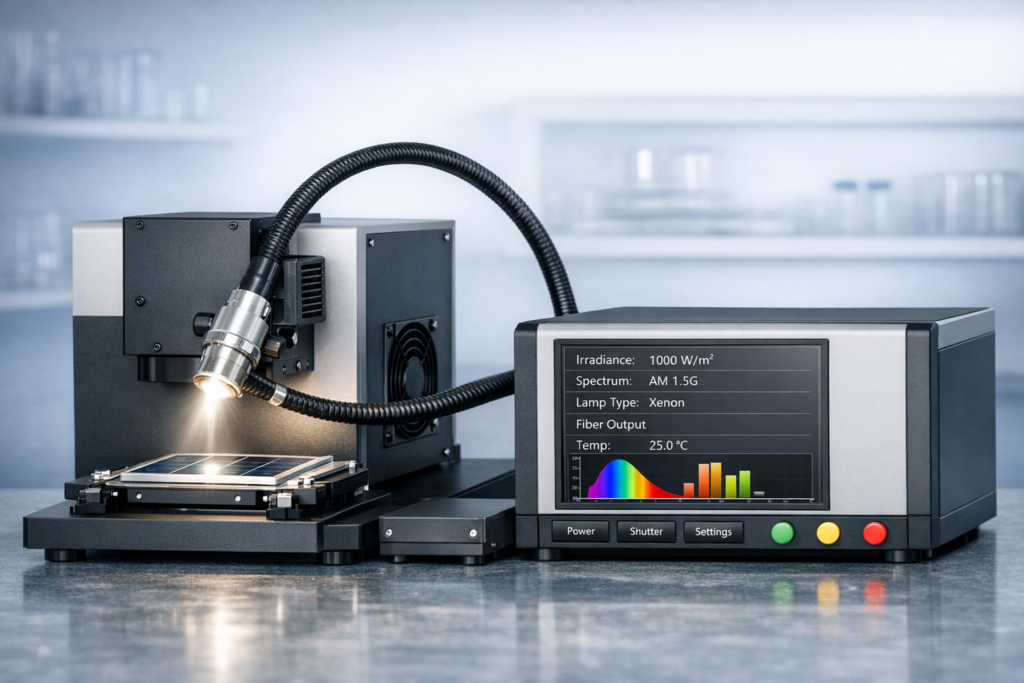

Fiber Coupled Xenon Solar Simulators with Extended NIR
Description:
This fiber‑coupled xenon solar simulator is a compact, steady‑state light source designed to closely approximate the AM1.5G solar spectrum across an extended wavelength range from 350 nm to 1800 nm, including strong near‑infrared (NIR) output. A single high‑power xenon lamp is used in combination with a light‑guide (fiber) irradiation system, allowing flexible illumination geometry without the need for optical‑axis alignment.
The fiber‑coupled design enables easy integration into diverse experimental setups, including glove boxes, dark enclosures, and custom test stations. With its extended NIR coverage and high spectral fidelity, the system is well suited for advanced photovoltaic, artificial photosynthesis, and photocatalysis research where response beyond the visible spectrum is critical.
Key Features:
- Xenon arc lamp light source
- Extended spectral coverage into the NIR
- Fiber coupled (light guide) illumination
- High approximation to AM1.5G solar spectrum
- Integrated lamp and power supply in a compact housing
- Adjustable irradiance with external control
- Alignment free operation
Specification:
- Light source : Xenon arc lamp
- Lamp power : 300 W
- Illumination mode: Steady state (continuous)
- Spectral range: 350–1800 nm
- Spectral simulation: AM1.5G standard sunlight approximation
- Illumination delivery: Fiber coupled (light guide) output
- Spectral accuracy: Class A level for applicable solar simulation standards
- Control interface : External controller, RS 232C communication
- System configuration: Lamp and power supply integrated in one housing
Applications:
- Advanced photovoltaic research (multi junction, concentrator, and quantum dot solar cells)
- Artificial photosynthesis experiments
- Photocatalyst development and evaluation
- Solar cell I V characterization under extended NIR response
- Cosmetic and material evaluation requiring broadband solar exposure
- Experiments in glove boxes or enclosed environments using fiber delivery
