Solar simulator

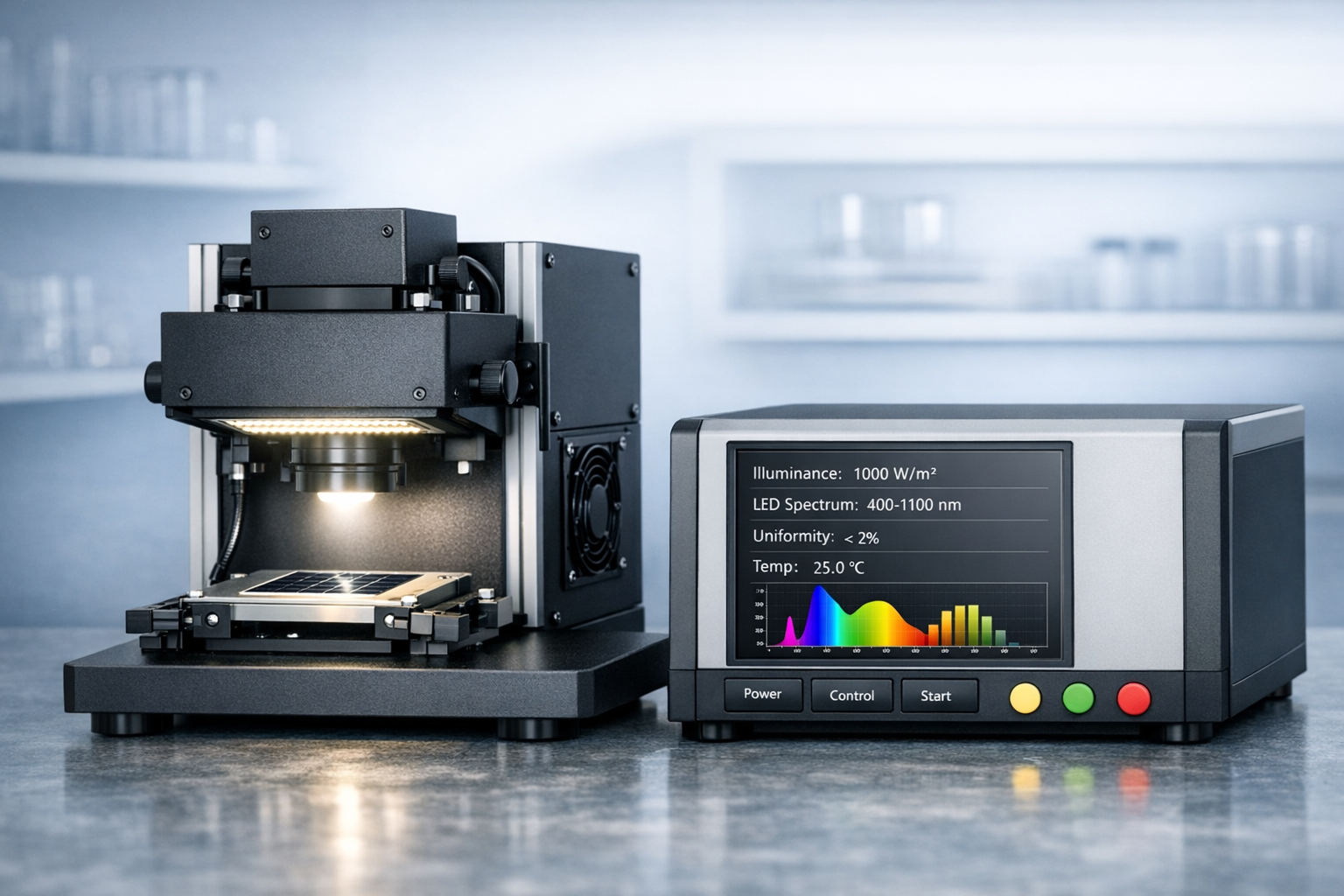

Compact, LED Solar Simulators for Small Area PV
Description:
A compact LED‑based solar simulator designed for small‑area photovoltaic (PV) device characterization provides a reliable and cost‑effective alternative to traditional xenon‑lamp systems. The simulator uses a carefully calibrated array of high‑power LEDs to generate a steady‑state artificial solar spectrum with excellent spectral match, spatial uniformity, and temporal stability.
Designed in accordance with IEC 60904‑9:2020 international standards, this type of solar simulator delivers Class AAA performance over a small illuminated area, making it well suited for laboratory research on thin‑film, perovskite, organic, and emerging photovoltaic technologies. Its small footprint, long operational lifetime, and minimal maintenance requirements make it ideal for high‑density research laboratories and educational environments.
Key Features:
- LED based steady state light source
- Class AAA solar simulator performance for small area devices
- Cost effective system design
- Tunable spectral output
- Minimal warm up time
- Long operational lifetime
- Compact and lightweight construction
Specification:
- Light source: LED array, steady state
- Spectral range: Approximately 350 nm – 1000 nm
- Spectral match: Class A
-
Spatial uniformity:
- Class A (small illuminated area, e.g. ~15 mm diameter)
- Class B/C for progressively larger areas
- Temporal instability: Class A
- Output irradiance: 1000 W/m² (1 sun) at the working distance
- Working distance: Approximately 8–9 cm
- Maximum lamp lifetime: ~10,000 hours
Applications:
- Small area photovoltaic cell and device testing
- Characterization of thin film, organic, and perovskite solar cells
- Laboratory evaluation of PV materials and device architectures
- Stability and degradation studies under simulated sunlight
- Educational and research laboratory solar energy experiments
