HIGH SPEED CAMERAS

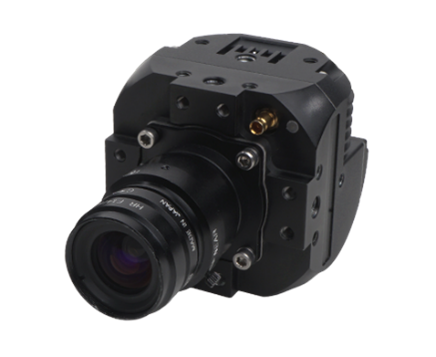

C540J
The C540J is a high performance crash and safety camera designed for both on board and off board crash test environments. Equipped with a low noise 1 inch sensor and engineered to withstand up to 170G, it delivers clean, artifact free, and fully synchronized imagery even under the demanding conditions of real world impact testing.
Speed Specifications:
• Max speed at full resolution of 2560 x 1680 is 1140 fps
• Max speed at the minimum resolution of 1920 x 24 is 50,820 fps
• Max speed at the minimum resolution of 1920 x 24 is 50,820 fps
Sensor Specifications:
• CMOS Sensor
• 2560 x 1680 pixels
• 5 µm pixel size
• 15.3 mm 1″ format
• 12-bit pixel depth
• CAR: 1920 x 24
• Quantum Efficiency: 60. %
• Temporal Dark Noise: 4.33 e-
• Dynamic Range: 61.87 dB
• 2560 x 1680 pixels
• 5 µm pixel size
• 15.3 mm 1″ format
• 12-bit pixel depth
• CAR: 1920 x 24
• Quantum Efficiency: 60. %
• Temporal Dark Noise: 4.33 e-
• Dynamic Range: 61.87 dB
